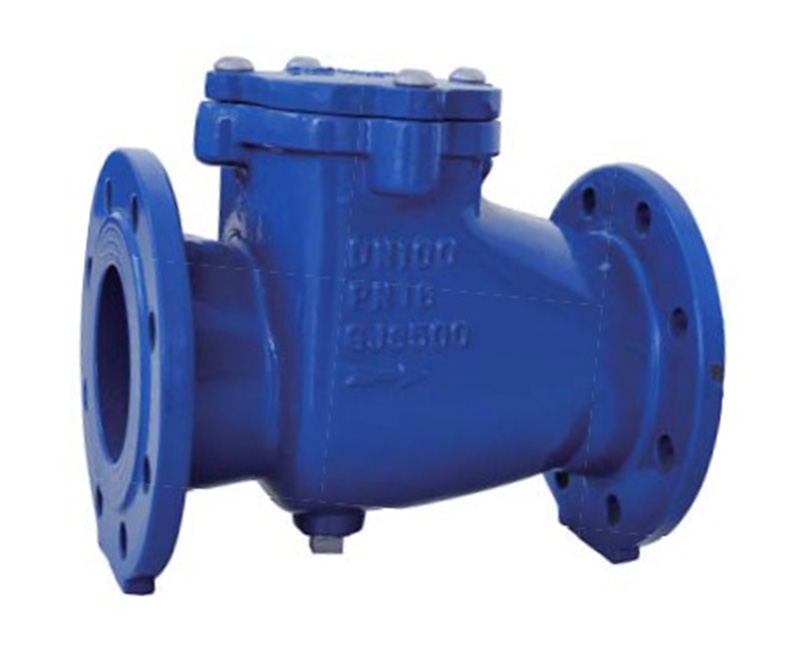

Обратный затвор PN16
| DN | D | K | G | n-d | C | L | H |
|---|---|---|---|---|---|---|---|
| 50 | 165 | 125 | 99 | 4-20 | 19 | 200 | 115 |
| 65 | 185 | 145 | 118 | 4-20 | 19 | 240 | 125 |
| 80 | 200 | 160 | 132 | 8-20 | 19 | 260 | 140 |
| 100 | 220 | 180 | 156 | 8-20 | 19 | 300 | 150 |
| 125 | 250 | 210 | 184 | 8-20 | 19 | 350 | 165 |
| 150 | 285 | 240 | 211 | 8-24 | 19 | 400 | 180 |
| 200 | 340 | 295 | 266 | 12-24 | 20 | 500 | 205 |
| 250 | 405 | 355 | 319 | 12-29 | 22 | 600 | 426 |
| 300 | 460 | 410 | 370 | 12-29 | 24.5 | 700 | 285 |
